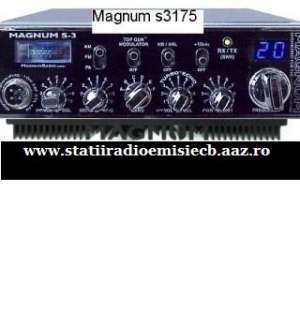

Statie Radio Magnum S3175 model iunie 2008 --- 2105.92 Lei ( ID:153937 )
| 1 EUR
|
 |
ROMANIA |
|
General Specifications
* Emisie in modurile FM (F3E) / AM (A3E)
* Impedanta antena 50 ohm
* Frequency Control Digital Phase-Lock Loop (PLL) Synthesizer
* Curent electric 10.5 - 15 V DC
Amperi necesari 7
Putere 175 wati maxim , ONLY EXPORT
* Tuning Steps 10 kHz
* Doi tranzistori finali 2SC1969 (x2)
* Spurious Emmissions >59 dB below peak output power
* Carrier Suppression >40 dB below peak output power
* FM Deviation +/- 2 kHz maximum
* Audio Response > 30 dB below peak output
* Frequency Response 400 - 2800 Hz
* Microphone Impedance Dynamic Microphone, 600 ohm
Receiver Specifications
* Circuit Type Dual Conversion superheterodyne
* Sensitivity AM 1.0 uV @ 10 dB S + N/N
FM 0.3 uV @ 12 dB SINAD
* Selectivity AM/FM 6.0 kHz (-6 dB) / 18 kHz (-60 dB)
* Adjacent Channel Rejection Better than 70 dB
* IF Rejection Better than 80 dB for all frequencies
* Frequency Response 250 - 3000Hz
* Audio Output Power 2 Watts minimum @ 10% THD with an 8 ohm load
* Audio Output Impedance 8 ohms
General Specifications
* Emisie in modurile FM (F3E) / AM (A3E)
* Impedanta antena 50 ohm
* Frequency Control Digital Phase-Lock Loop (PLL) Synthesizer
* Curent electric 10.5 - 15 V DC
Amperi necesari 7
Putere 175 wati maxim , ONLY EXPORT
* Tuning Steps 10 kHz
* Doi tranzistori finali 2SC1969 (x2)
* Spurious Emmissions >59 dB below peak output power
* Carrier Suppression >40 dB below peak output power
* FM Deviation +/- 2 kHz maximum
* Audio Response > 30 dB below peak output
* Frequency Response 400 - 2800 Hz
* Microphone Impedance Dynamic Microphone, 600 ohm
Receiver Specifications
* Circuit Type Dual Conversion superheterodyne
* Sensitivity AM 1.0 uV @ 10 dB S + N/N
FM 0.3 uV @ 12 dB SINAD
* Selectivity AM/FM 6.0 kHz (-6 dB) / 18 kHz (-60 dB)
* Adjacent Channel Rejection Better than 70 dB
* IF Rejection Better than 80 dB for all frequencies
* Frequency Response 250 - 3000Hz
* Audio Output Power 2 Watts minimum @ 10% THD with an 8 ohm load
* Audio Output Impedance 8 ohms
Garantie: 12 Luni
